Laptop Charging Cart
Introducing Trend’s Laptop Charging Cart – the perfect solution for charging and storing laptops and tablets! With Short Circuit Protection and Constant Current Charging, you can rest easy knowing that your devices are protected from any electrical issues.

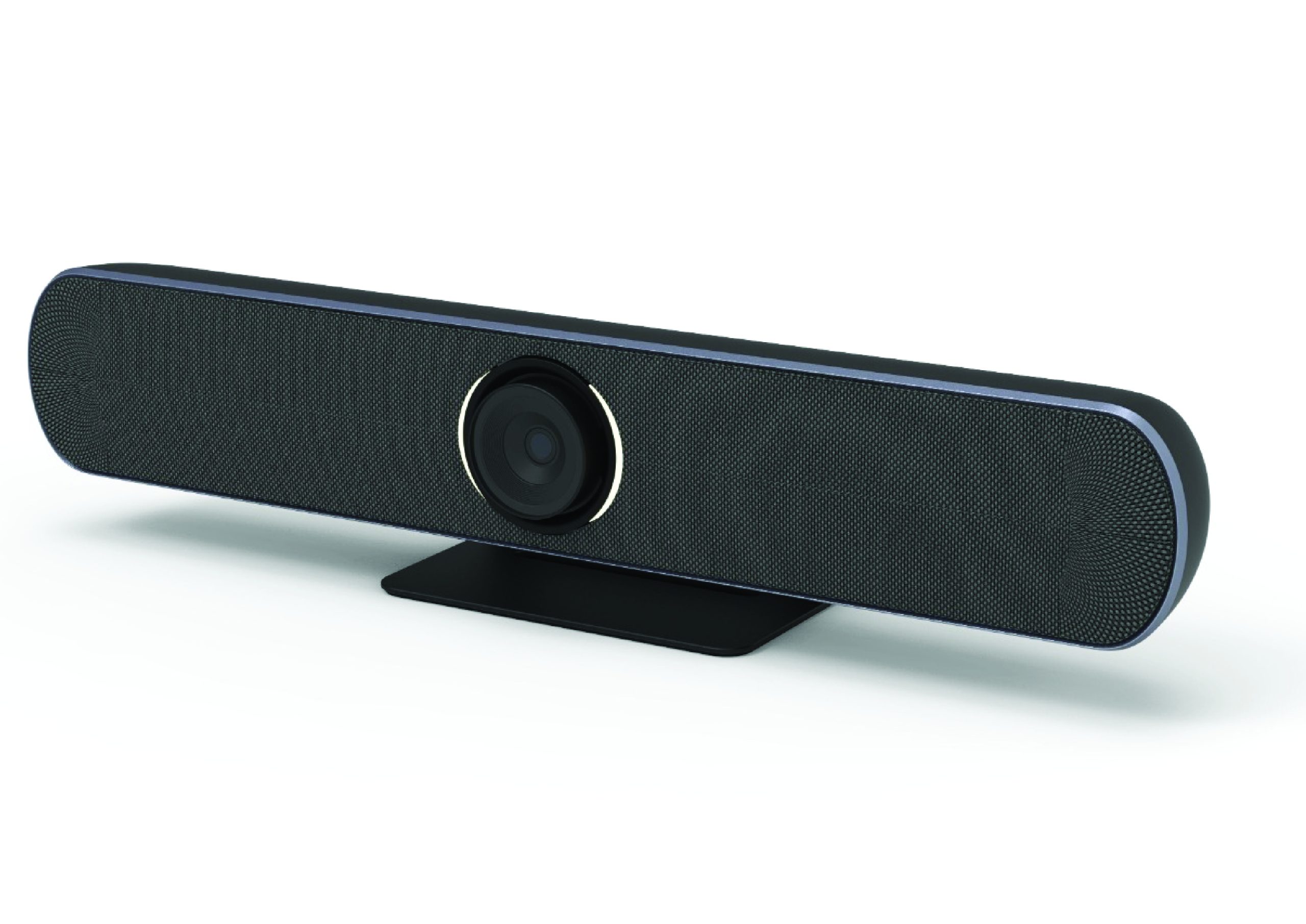

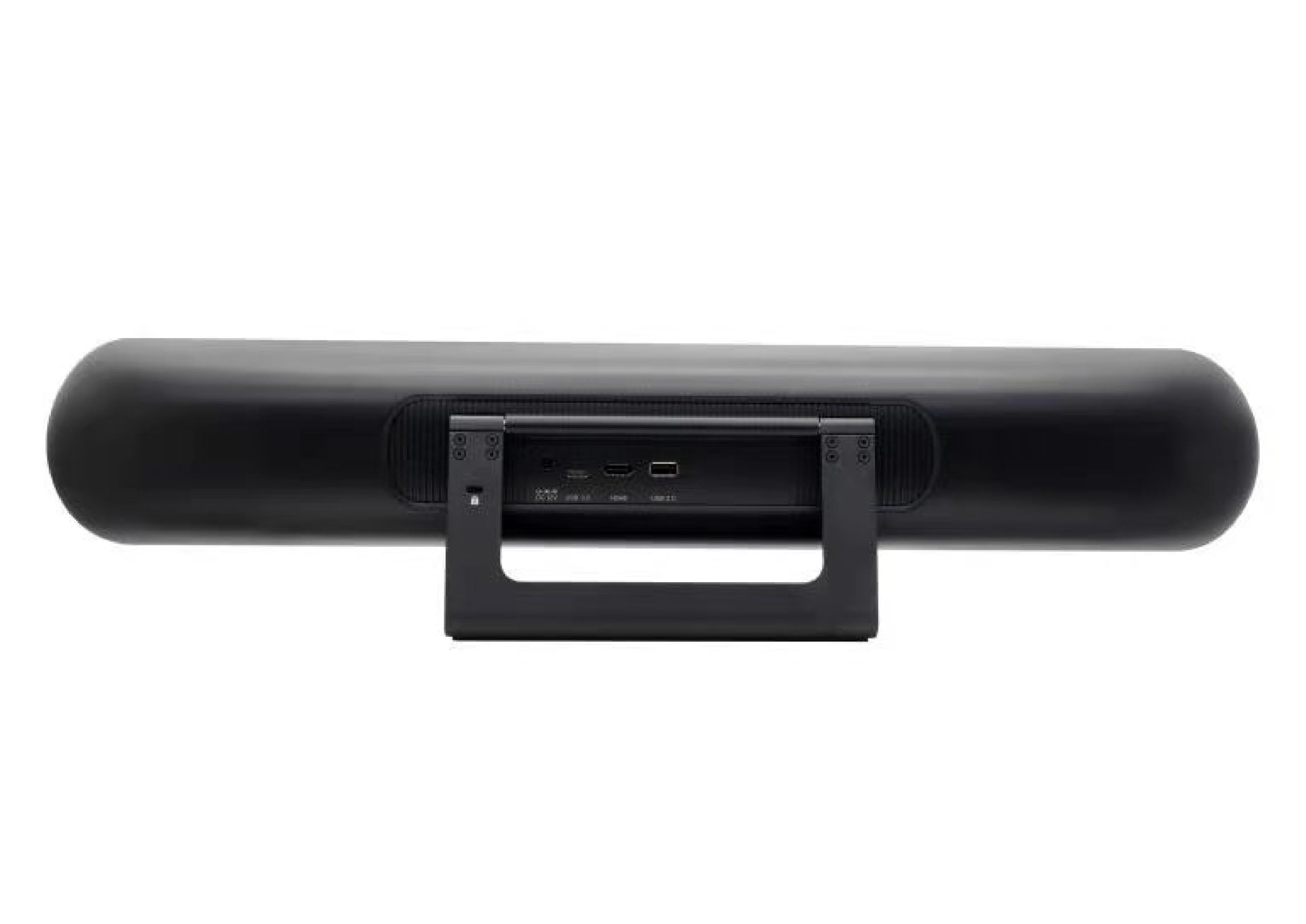

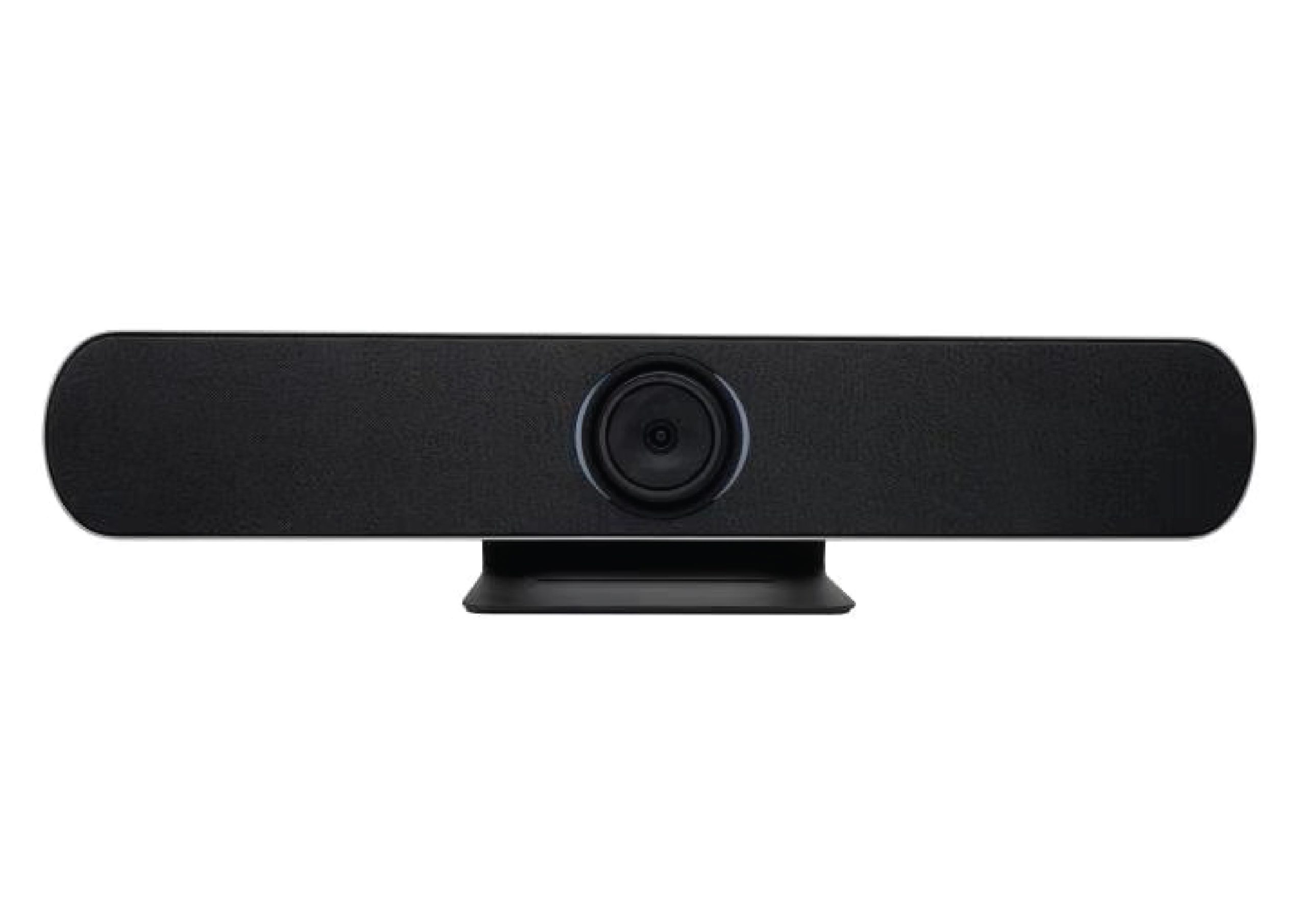

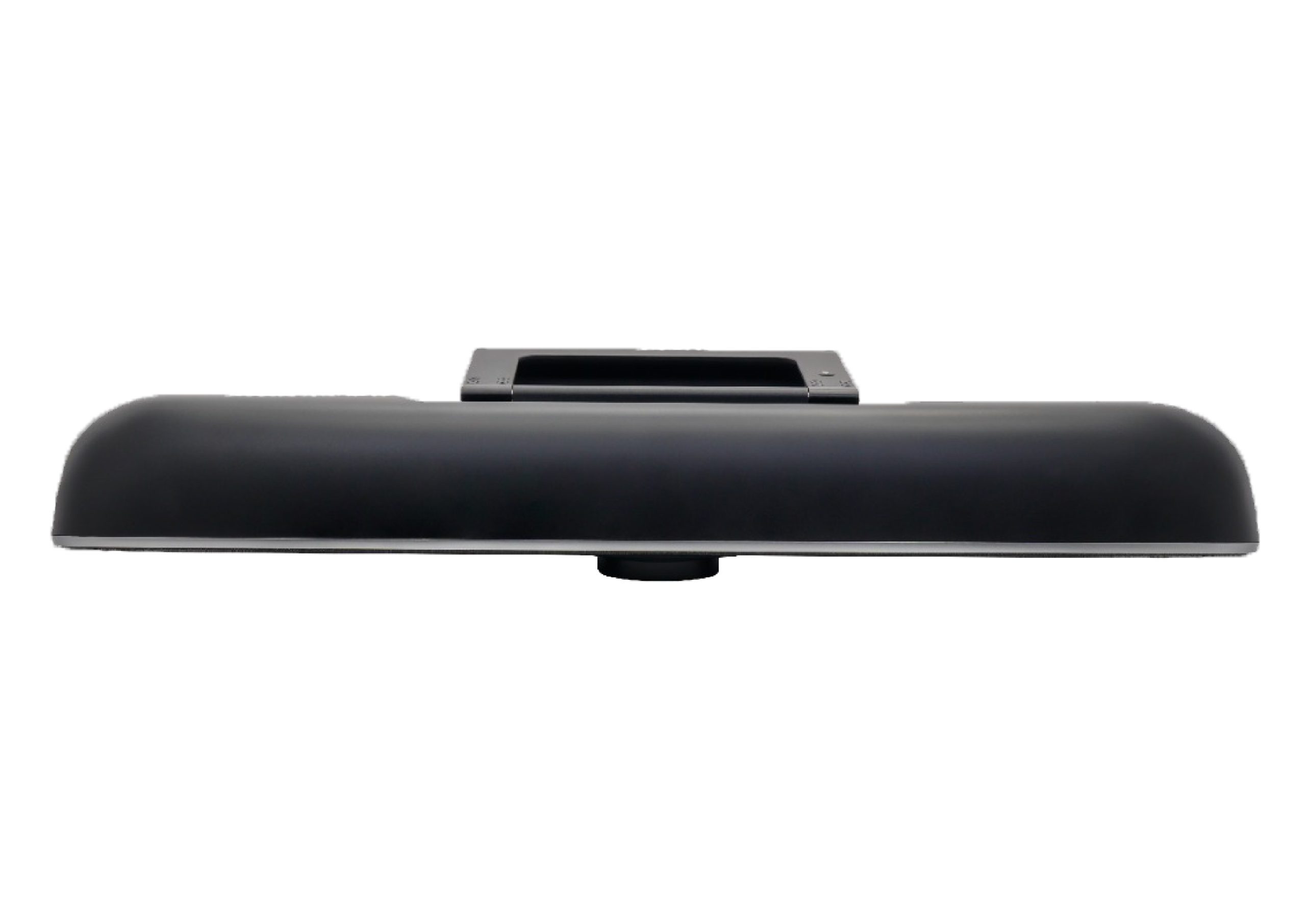

OBS1000B/4K All-in-one Business USB Video Bar
- 4K, 121o super wide-angle lens, built-in electric pan/tilt head 15o.
- 4b, USB3.0, ultra-high-definition audio and video.
- Built-in omnidirectional microphone array with a radius of 6 meters.
- Supporting listening to voice recognition, automatic selection of
- participants and automatic tracking of speakers.
- Full-range high-fidelity speakers

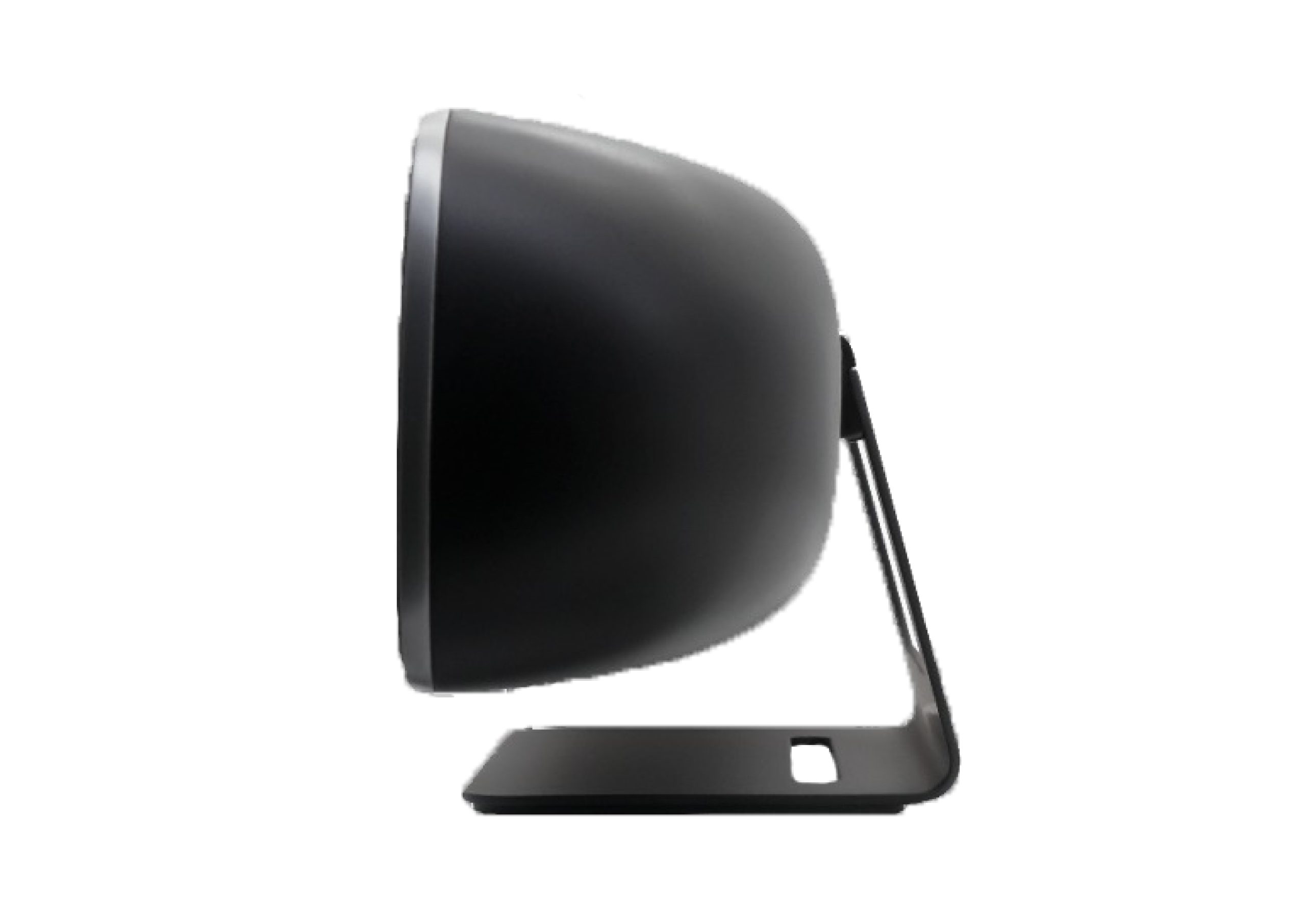

OBS200C/ Auto Framing 4K EPTZ Camera
- Ultra HD 4K Resolution.
- Built-in MIC with Auto Framing.
- ePTZ: Support ePTZ and 10X digital Zoom.
- Wide Application: Personal video conferencing, enterprise video conferencing, collaboration meeting etc.
- Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video, even in low light condition.
Product Features
4K UHD Display
Powered by Android 11
Wireless Screen Sharing
Smart Backlight Adjusting
Multi Touch upto 20 points
Double Side Anti Glare Glass
Fast page sharing by scanning QR Code
HD 13 MP Camera with 6 Array Mic (Optional)
Product Specifications
Display
Panel Size
65/75/86/98 inches
Aspect Ratio
16:9
Resolution
3840(H)*2160(V) FULL UHD 4K
Back Light Unit
DLED Straight Down Type
Response Time
8ms
Color Gamut
72% NTSC (Typ.)
Display Color
1.07B(10bit)
Contrast Ratio (Typ)
4000:1
Viewing Angle
178° (H/V)
Brightness
400 cd/m2
Life Time
60000 Hours
Touch System
Sensing Type
Infrared recognition
Touch point
20 Touch Point
Surface Hardness
Toughened Anti Glare Glass with
Level 7H of Mohs Standard with
Anti-Fingerprint coating & Anti-Glare coating
Video / Audio & Network
Speaker Type
Built-in Speaker
Output Power
(8Ω 15W)*2 stereo
Networks
WiFi 6 (IEEE 802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz) /LAN
Camera & Microphone (optional)
4K 13mega pixel, Auto-Focus with the
perspective angle of 100 degrees, 6 array
microphone with 0-8 meter pickup distance,
support 3D noise reduction Echo cancellation.
Display Connectors
HDMI IN
1 front 2 back
PC- Audio IN
1
SPDIF
1
USB 2.0
2 front 1 back
USB 3.0
2
USB Touch Output
1 front 1 back
RJ45
2
RS232
1
Type C
1 (Optional)
NFC Reader
1 (Optional)
HDMI Output
1 (Optional)
Power
Power Requirements
100~240V AC 50/60Hz
Standby Power
≤0.5W
Part Numbers
65″ Flat Panel
TR-FPV65T82
75″ Flat Panel
TR-FPV75T82
86″ Flat Panel
TR-FPV86T82
98″ Flat Pane
TR-FPV98T82
Product Dimensions
– 65 Inches: 1485*917.7*91.8 mm
– 75 Inches: 1707.4*1042.9*91.8 mm
– 86 Inches: 1953.6*1181.7*91.8 mm
– 98 Inches: 2216.8*1317.3*108.7mm
Weight - N.W - G.W
– 65 Inches:
– 75 Inches:
– 86 Inches:
– 98 Inches:
37.5 Kg
53.3 Kg
73 Kg
98 Kg
44.4 Kg
71 Kg
88.4 Kg
121 Kg
Built In Android
System Version
Android 11.0 / higher
CPU
Quad-Core A55 1.5GHz Mali
G53*MP2
Memory
4G/Optional 8G
Storage
32G / Optional 64G SSD
PC OPS (Optional)
Core i5/i7 4G 128SSD Windows 10 Optional
