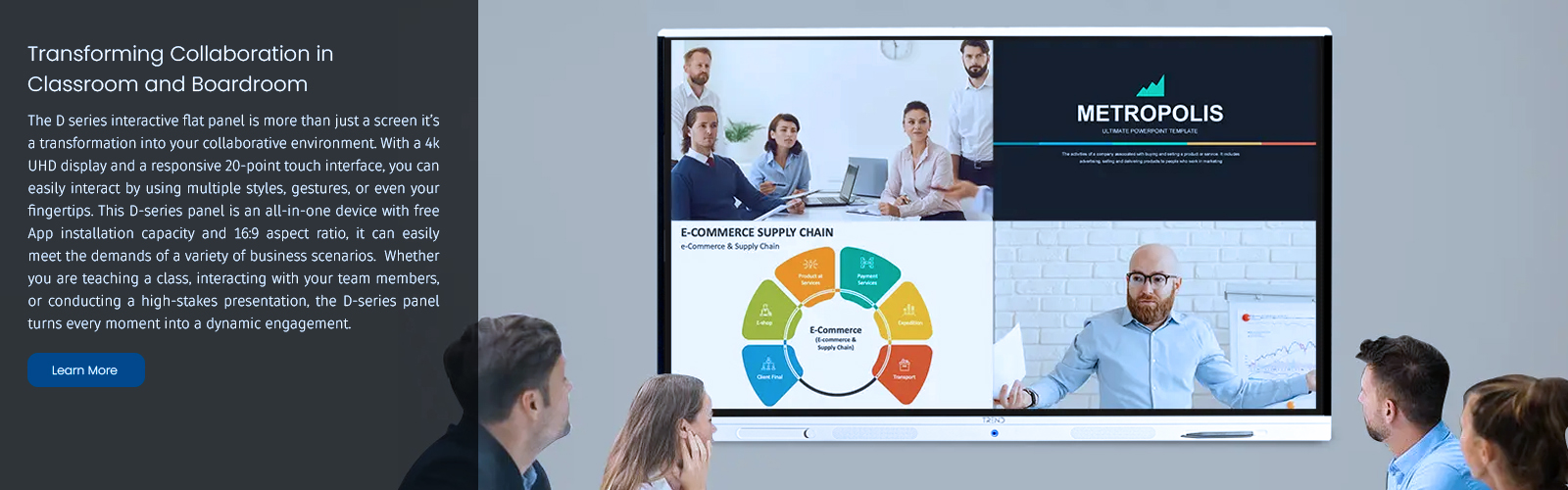

Transforming Collaboration in the Classroom and Boardroom
The D series interactive flat panel is more than just a screen- it’s a transformation into your collaborative environment. With a 4k UHD display and a responsive 20-point touch interface, you can easily interact by using multiple styles, gestures, or even your fingertips. This D-series panel is an all-in-one device with free App installation capacity and a 16:9 aspect ratio, it can easily meet the demands of a variety of business scenarios. Whether you are teaching a class, interacting with your team members, or conducting a high-stakes presentation, the D-series panel turns every moment into a dynamic engagement.

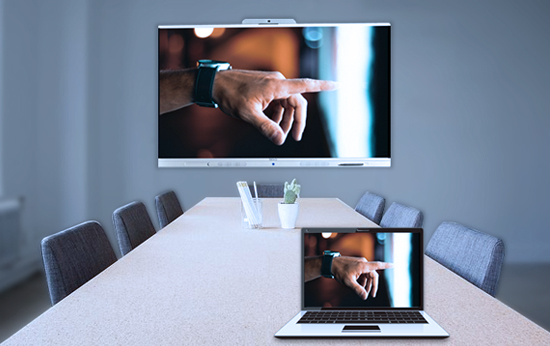

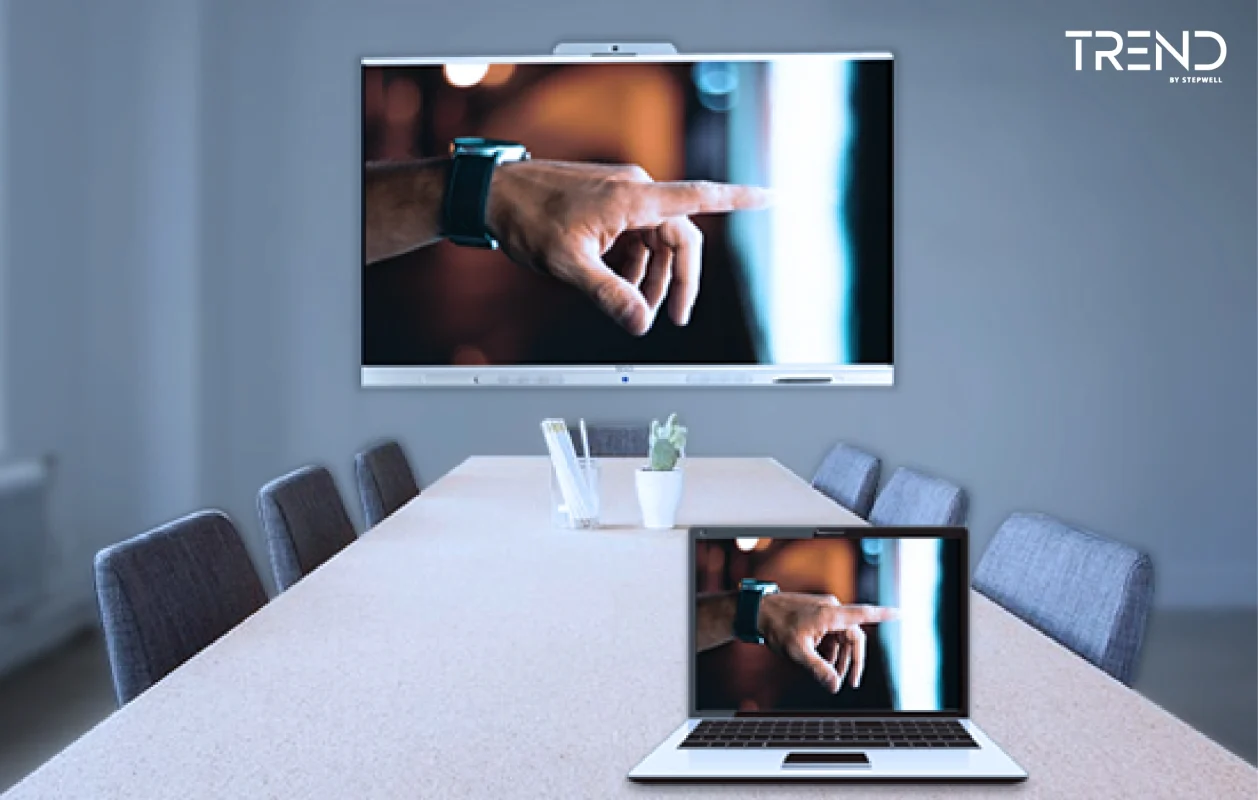

Integrating the latest technology
Our D series interactive flat panel is designed to elevate the experience of modern classrooms, boardrooms, and collaborative spaces. It possesses unique and latest technology to meet the needs of every business.
- Double-sided anti-glare glass
- Multi-language support
- Pre-built business and video conferencing app
- HD 48 MP camera with auto framing and speaker tracking
- Rich Matt white color frame body
Accuracy That Feels Like a Pen On Paper
The D Series Interactive Flat Panel features Infrared Ultra Fine Technology, which revolutionizes how people write through its groundbreaking feature design. The innovative styles, together with Infrared Ultra Fine Technology, enable precise, attainable handwriting displays that imitate pen stroke fluidity for annotating data charts and sketching ideas.
Infrared Ultra Fine Writing enables users to interact with their texts through maximum sensitivity and control throughout the creation of stories and report annotations. The feature serves as a thoughtful extension of cognitive ideas that transmit naturally between writing instruments and digital interfaces.

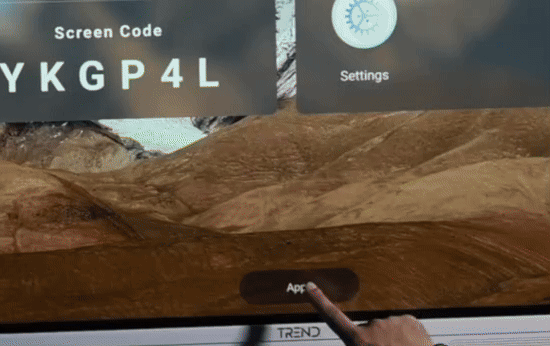

Zero Bonding Touch Screen
The D Series Interactive Flat Panel comes with the future-oriented Zero Bonding Touch Screen feature. The groundbreaking technology closes down any space that used to exist between the display surface and the touch sensor while ensuring exceptional response in user interactions.
The enhanced zero bonding technique ensures a 0-1mm air gap between the LCD panel and glass, resulting in greater screen image quality. The Zero Bonding Touch Screen delivers perfect accuracy for every touch and smooth swiping that produces stunning displays during real-time collaboration and complex lesson explanations, and digital presentations.

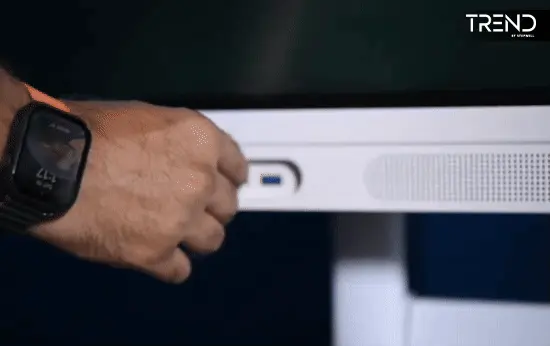

D-Series Superior Connective
The Trend’s Newline D-series interactive flat panel consists of a Type-C cable with 15W charging, reserved touch control for laptop or cellphone screencasting, etc. The diversity of connection ports provides great options so that you can connect and display things easily.
The Trend D Series Interactive Flat Panel is an all-in-one solution for applications that require great performance, adaptability, and simplicity of use, thanks to its strong construction and feature-rich design. Whether for corporate meetings, collaborative brainstorming, or classroom activities, this panel offers a seamless experience, allowing users to interact, create, and engage with material like never before.
Product Features
4K Ultra HD Display
Dual Operating Systems
Multi-Touch Input
Anti-Glare Glass
Built-in Speakers
Wireless Screen Sharing
Product Specifications
Display
Panel Size
65 / 75 / 86 / 98 inches
Aspect Ratio
16:9
Display Area
- 65 inches: 1429 (H) × 804 (V) mm
- 75 inches: 1652.5 (H) × 930.5 (V) mm
- 86 inches: 1897 (H) × 1068 (V) mm
- 98 inches: 2158.8 (H) × 1214.3 (V) mm
Resolution
3840 (H) × 2160 (V) FULL UHD 4K
Pixel Pitch
- 65 inches: 0.372 × 0.372 mm
- 75 inches: 0.430 × 0.430 mm
- 86 inches: 0.4935 × 0.4935 mm
- 98 inches: 0.5622 × 0.5622 mm
Back Light Unit
DLED Straight Down Type
Response Time
8ms
Color Gamut
72% NTSC (Typ.)
Refreshing Frequency
60Hz
Display Color
1.07B (10bit)
Contrast Ratio (Typ)
4000:1
Viewing Angle
178° (H / V)
Brightness
400 cd/m²
Life Time
60000 Hours
Touch Systen
Sensing Type
Infrared recognition
System Support
Windows 10 / Windows 8 / Windows 7 / Windows XP / Android / Linux / Mac OS X / Chrome
Touch Point
20 Touch Points, minimum object size diameter ≥ 2mm
Inductive Object
Finger, stylus, and any other non-transparent objects
Response Time
< 7ms
Accuracy
±1mm (≥ 90% touch area)
Touch Resolution
32768 × 32768
Interface
USB
Touch Drive
Free drive
Operating Life
More than 60,000,000 clicks
Surface Hardness
Toughened anti-glare glass with Level 7H (Mohs standard), anti-fingerprint coating, and anti-glare coating
Accessories
Standard Power Cord
1
USB Cable
1
HDMI Cable
1
Mount Bracket
1
Stylus Pen
1
Mobile Floor Stand
Optional
Operation Instructions
1
Display Connectors
HDMI IN
1 front, 2 back
PC Audio IN
1
SPDIF
1
USB 2.0
2 front, 1 back
USB 3.0
2
USB Touch Output
1 front, 1 back
RJ45
2
RS232
1
Type-C
1 (Optional)
NFC Reader
1 (Optional)
HDMI Output
1 (Optional
Video / Audio & Network
Speaker Type
Built-in speaker
Output Power
(8Ω 15W) × 2 stereo
Networks
WiFi 6 (IEEE 802.11 ac/b/g/n/a/ax, 2.4GHz / 5GHz) / LAN
Camera & Microphone (Optional)
4K 48-megapixel camera with auto-framing and speaker tracking (100° perspective angle), 8-array microphone with 0–8m pickup distance, support 3D noise reduction and echo cancellation.
