Laptop Charging Cart
Introducing Trend’s Laptop Charging Cart – the perfect solution for charging and storing laptops and tablets! With Short Circuit Protection and Constant Current Charging, you can rest easy knowing that your devices are protected from any electrical issues.

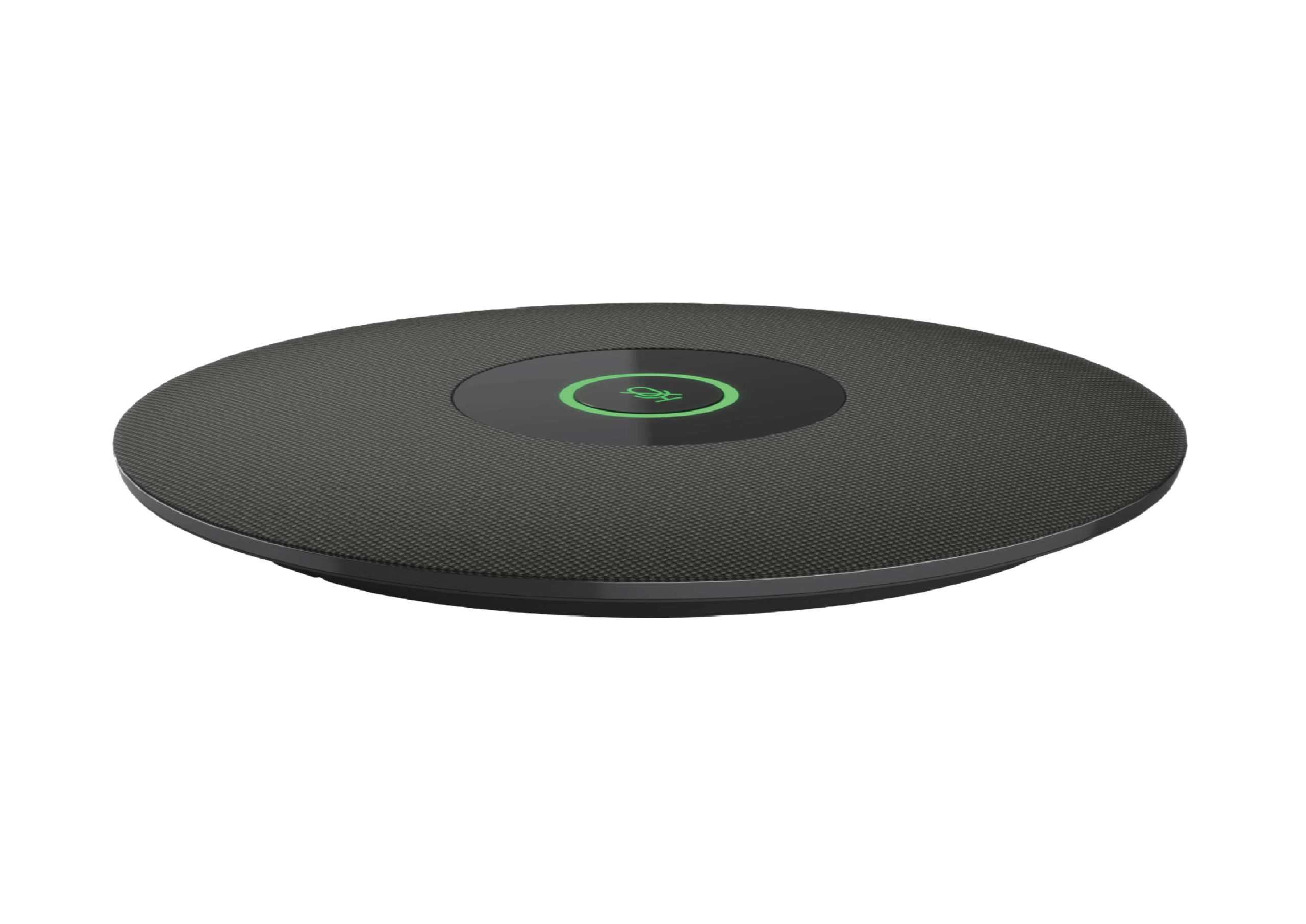

OBS-M700/Omnidirectional Digital Array Microphone
- Digital Array Microphone, Long Distance Voice Pickup. Intelligent Voice Tracking.
- Multiple Audio Algorithms, High Quality Of Sound.
- Simply Installation, Plug and Play.
- Available in Two Colors, Blends into Different Environments.

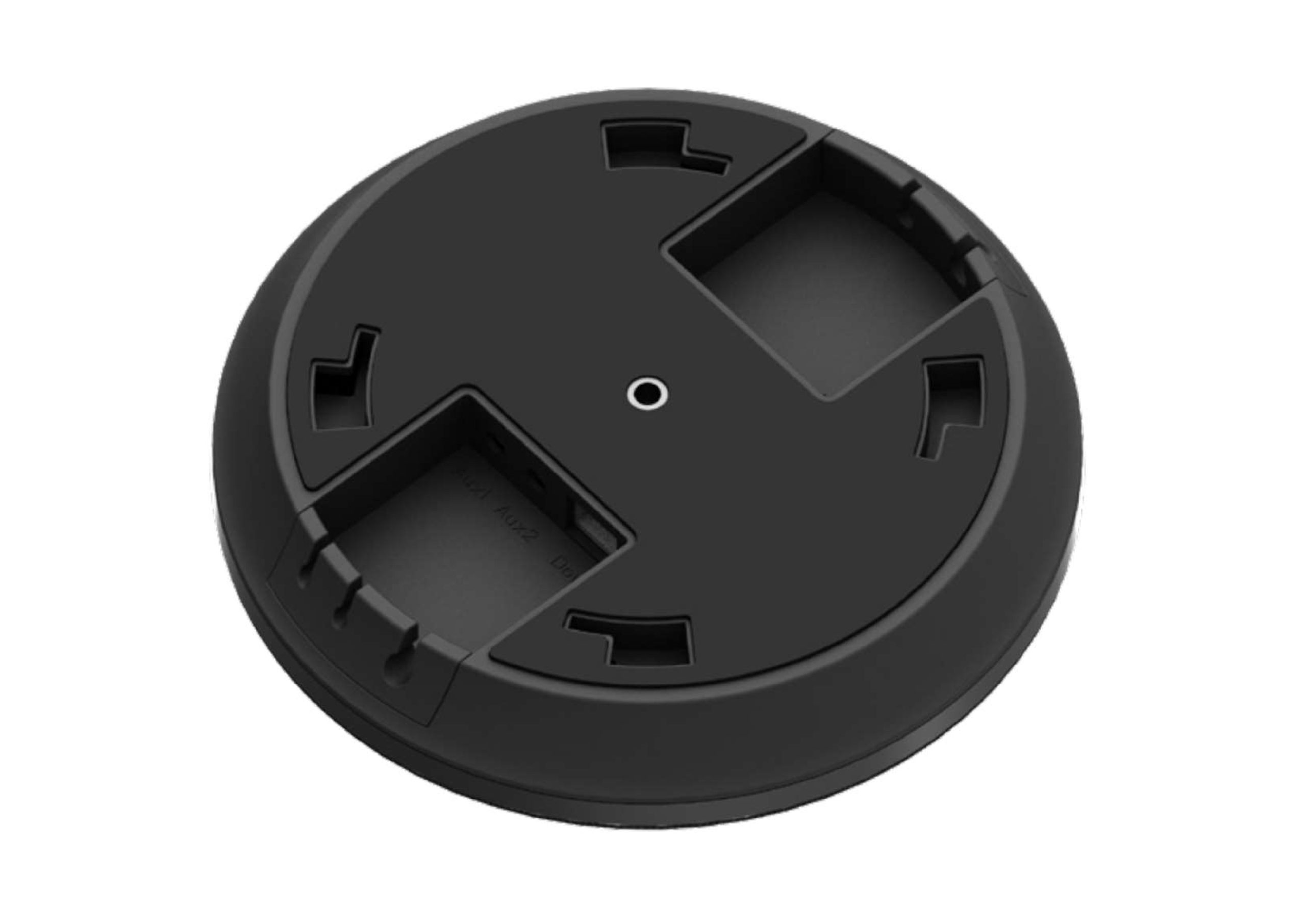

OBS702/ Cascading Omnidirectional Digital Array Microphone
- Digital Array Microphone, Long Distance Voice Pickup. Blind Beamforming; Automatic Alignment to Speaker.
- PoE Cascading; Even Coverage of Conference Room Pickup.
- Standard Interface; Plug and Play.
- Ceiling/Wall Mounting, Simple and Flexible Deployment. Smart Audio Algorithms; Clear Natural Sound.

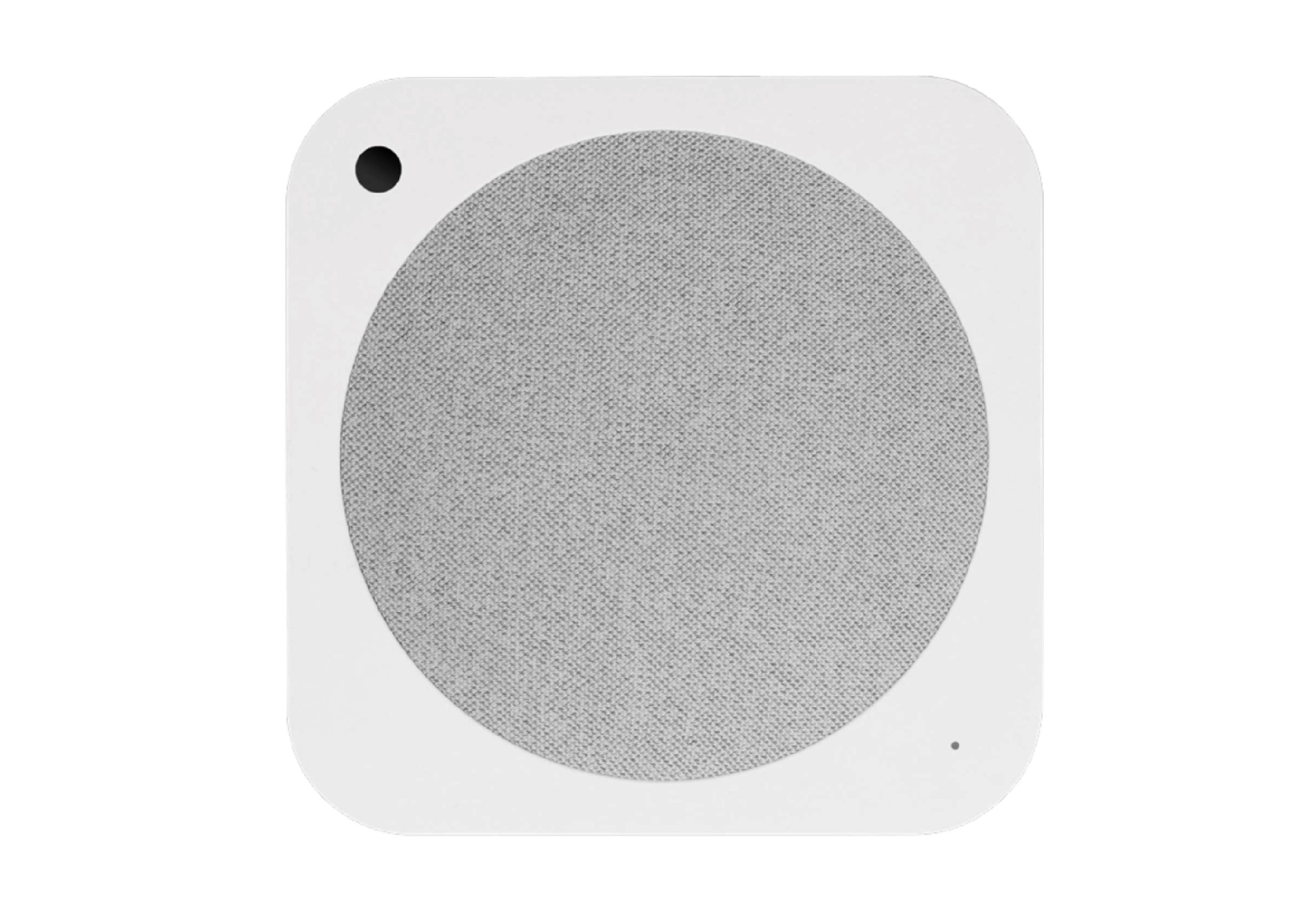

OBS85 / Cieling Beamforming Microphone For Sound Reinforcement System
- Advanced Audio Algorithms.
- One-key Interactive Sound Reinforcement.
- Ceiling/Wall Flexible Installation. Simply Installation, Plug and Play.

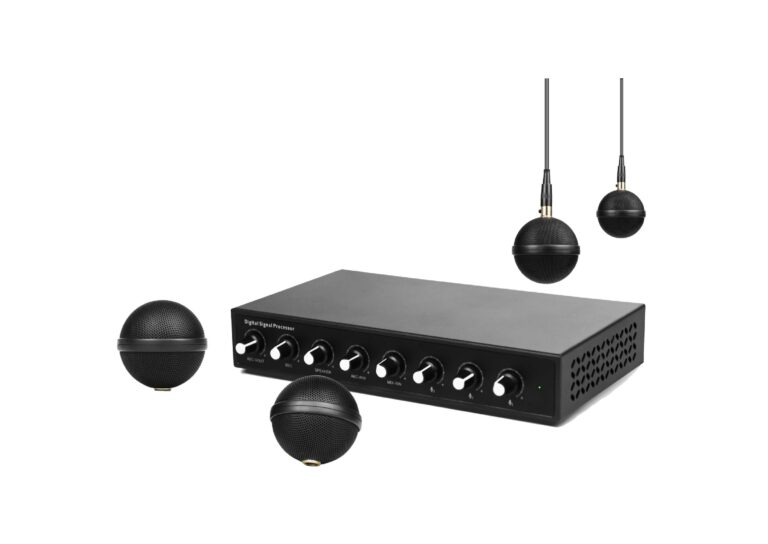

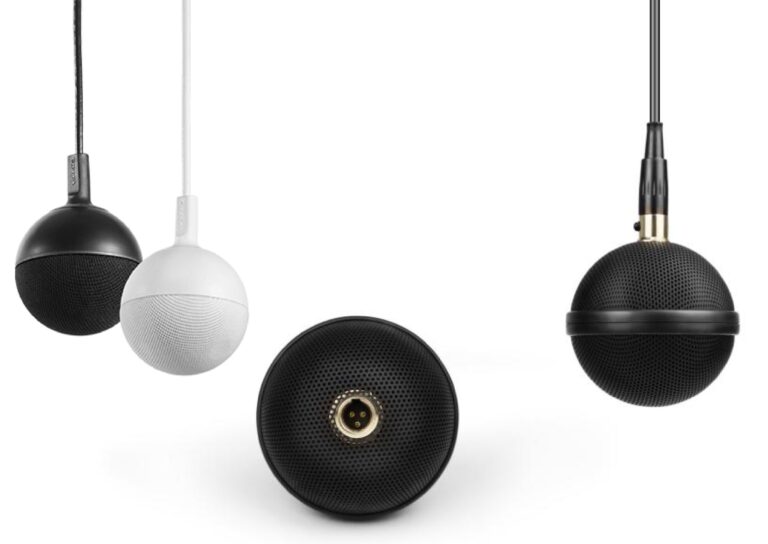

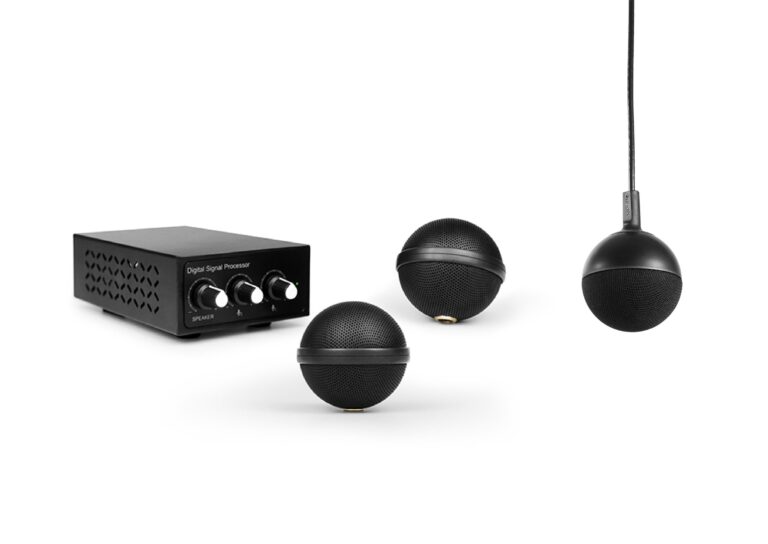

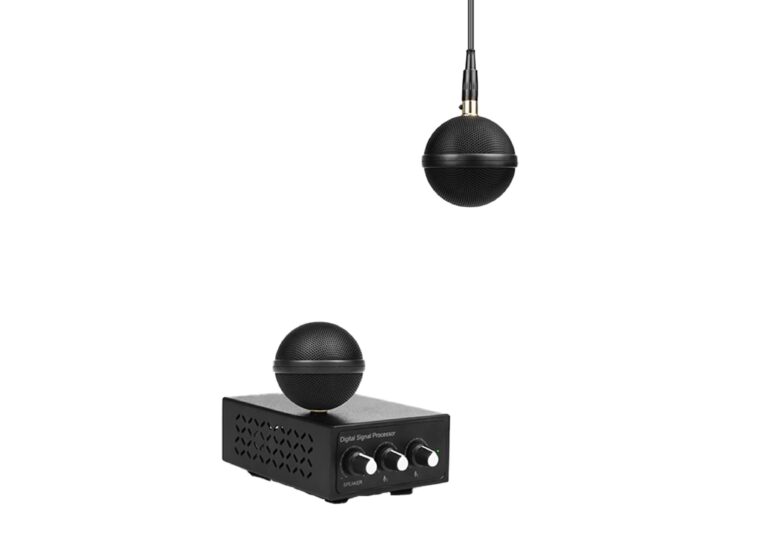

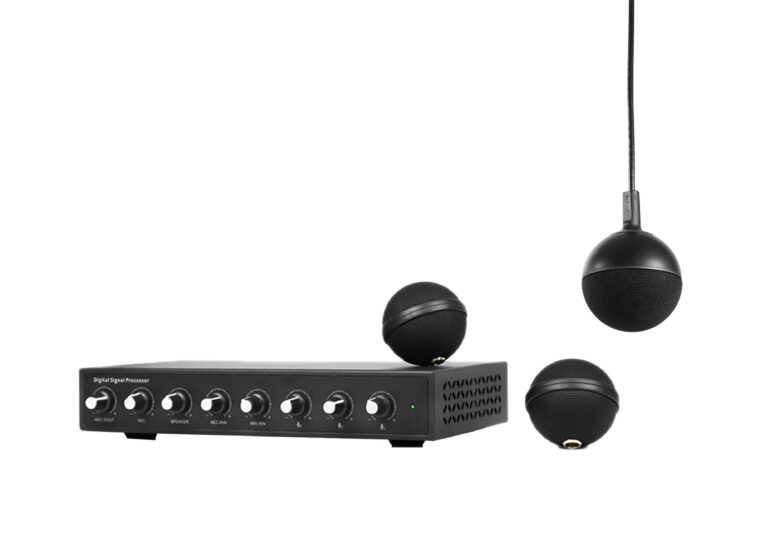

OBS260-CM/Digital Sound Processor Of Ceiling Microphone
- Power over Ethernet. Dereverberation.
- USB Audio Interface. Standard Interfaces. Professional Audio Device.
- Test-free, Easy for Maintenance and Management.

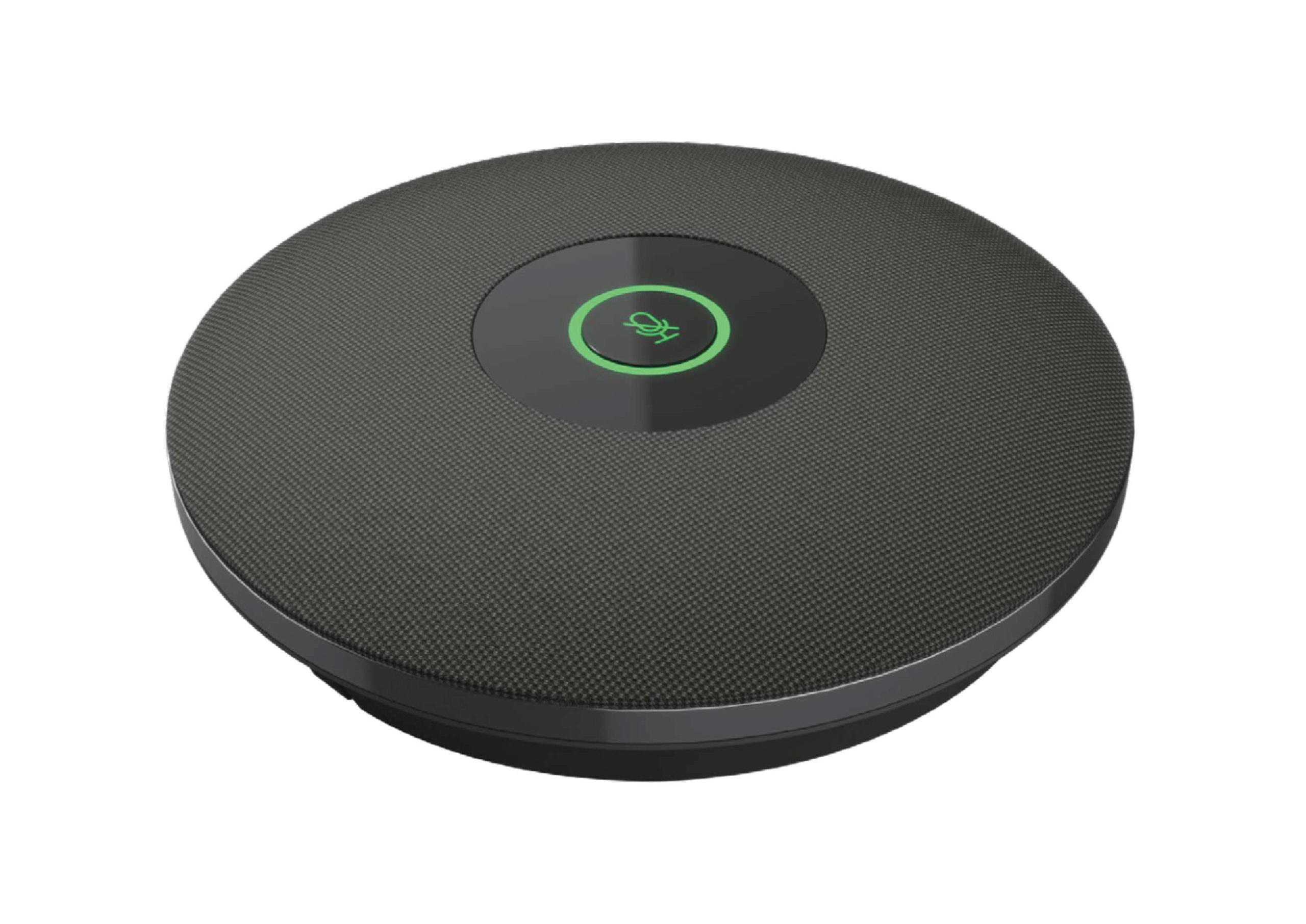

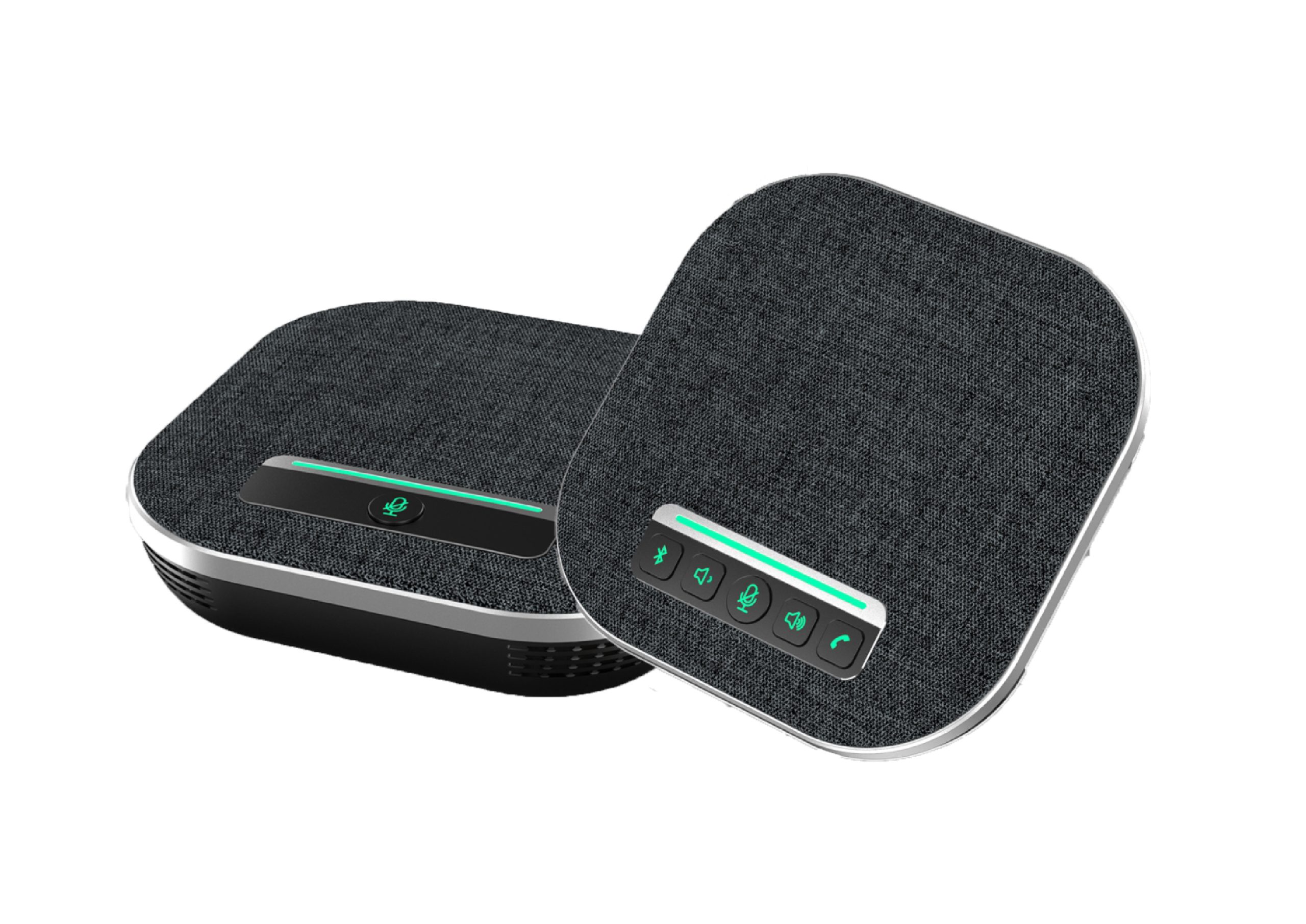

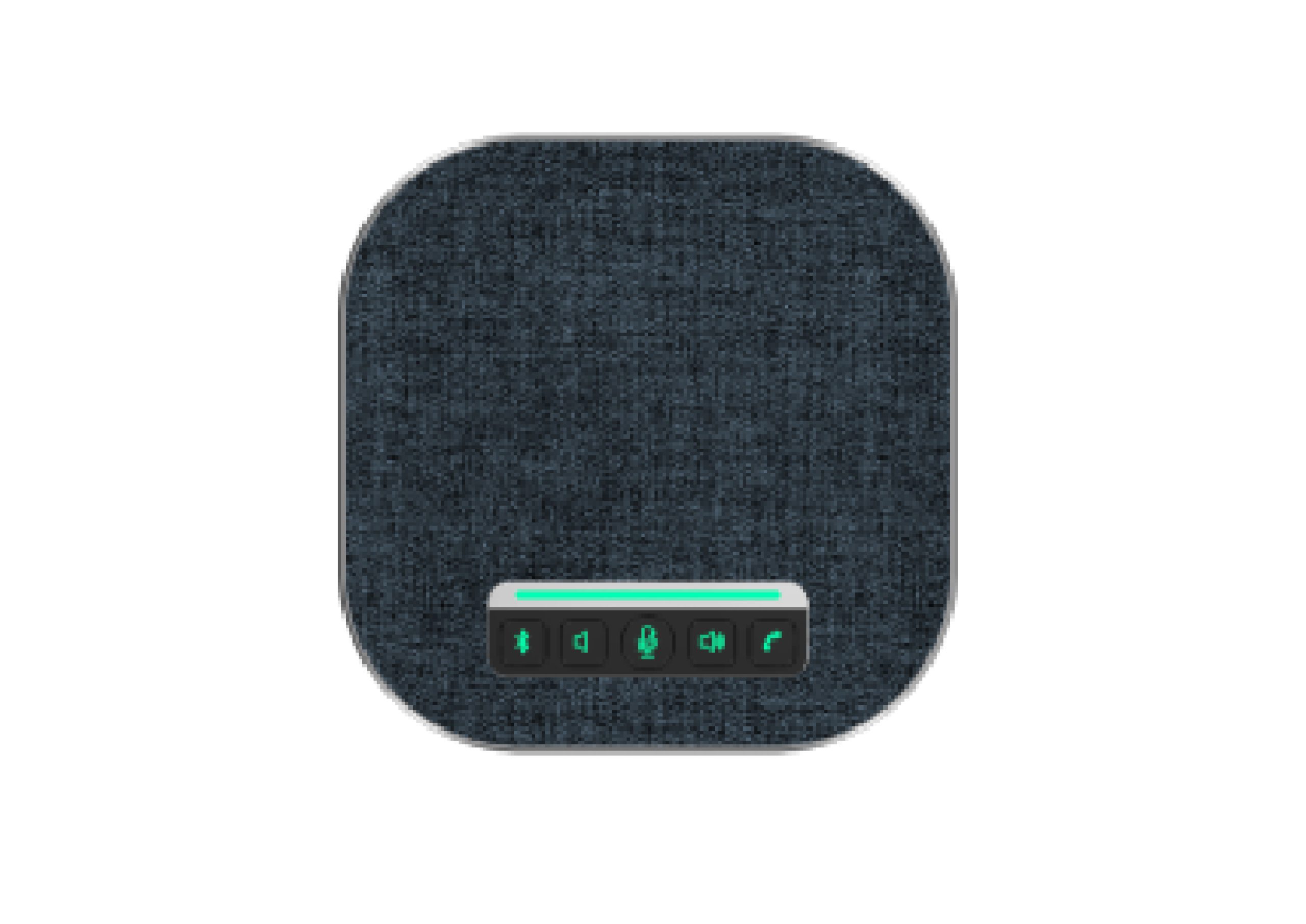

OBS700/Omnidirectional Speakerphone
- Full Duplex Deep Echo Cancellation. Perfect Expansion Capability.
- Support AUX Interface. Bluetooth Transmission.
- Built-in Unidirectional Microphones. High Fidelity Digital Sound System. USB Plug & play.

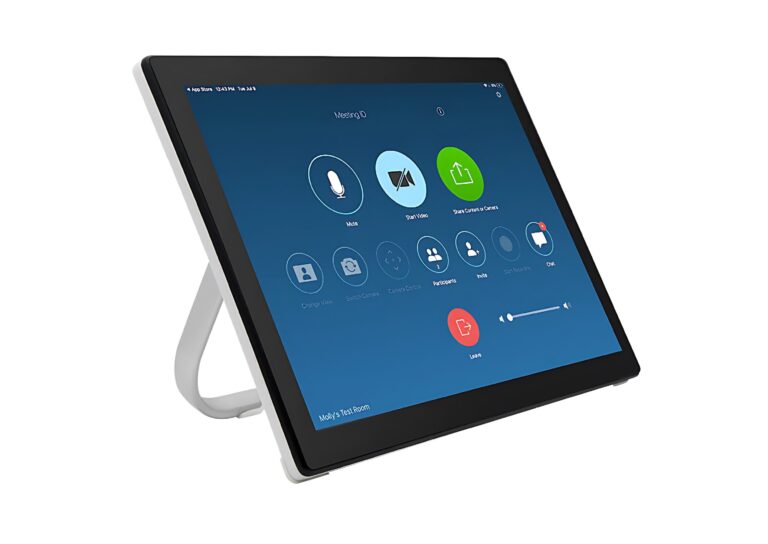

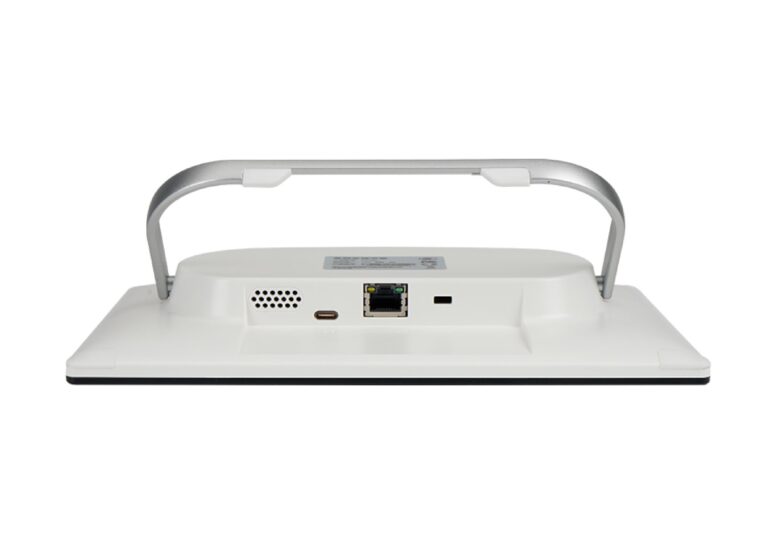

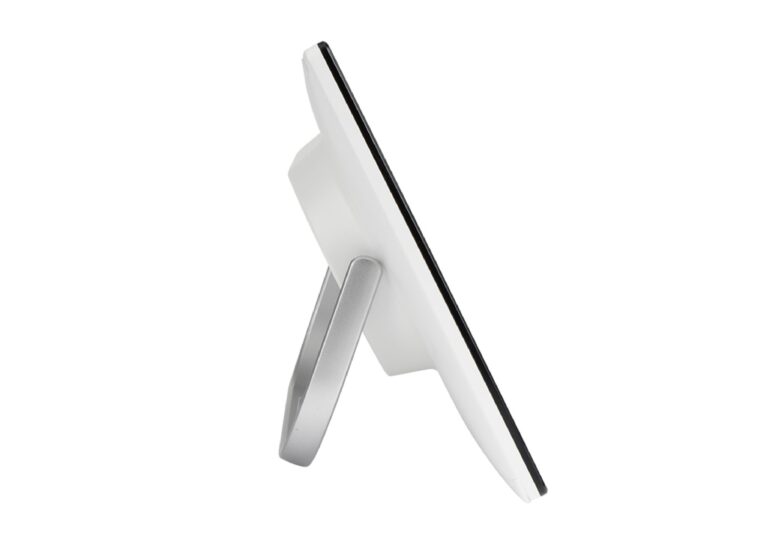

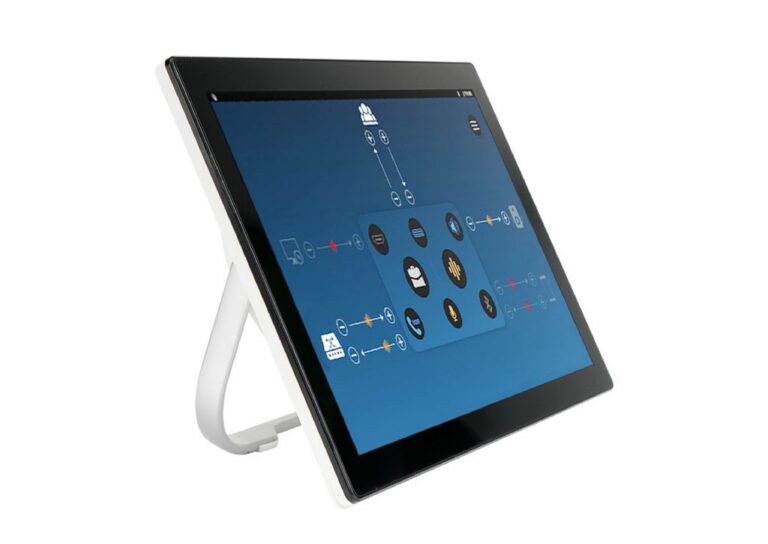

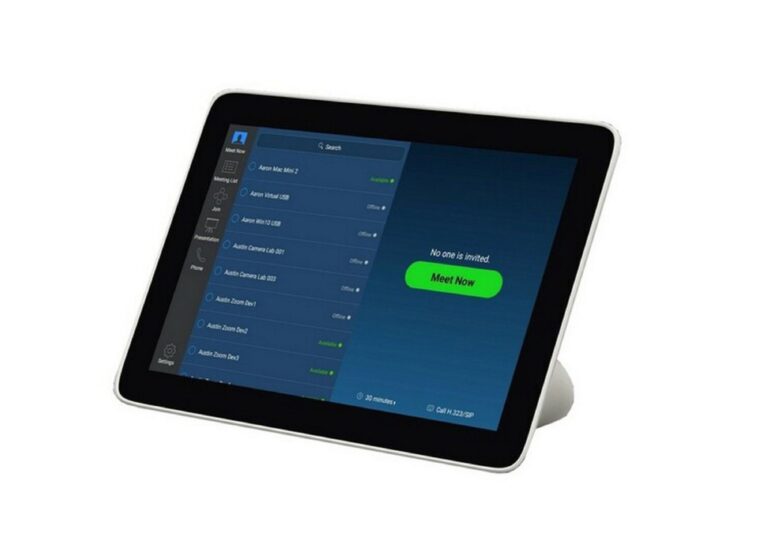

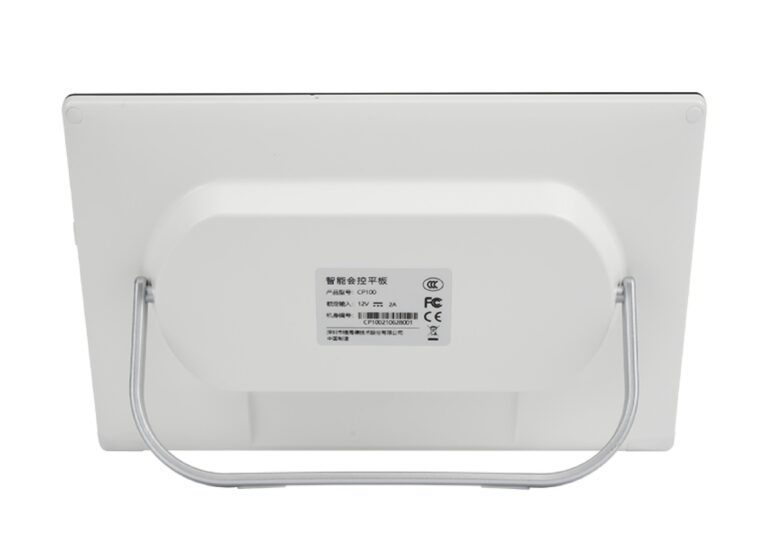

OBS100/ Intelligent Conference Control Terminal (Android based)
- 1” IPS touch screen, 1280*720P resolution, 10-point touch.
- Android 8.1 system, compatible with a variety of conference control software. SDK fully open interface, customizable development.
- Comes with a stand, can easily adjust the angle, can be wall mounted.
- Support USB 5V power supply and POE power supply at the time.
Product Features
4K UHD Display
Powered by Android 11
Wireless Screen Sharing
Smart Backlight Adjusting
Multi Touch upto 20 points
Double Side Anti Glare Glass
Fast page sharing by scanning QR Code
HD 13 MP Camera with 6 Array Mic (Optional)
Product Specifications
Display
Panel Size
65/75/86/98 inches
Aspect Ratio
16:9
Resolution
3840(H)*2160(V) FULL UHD 4K
Back Light Unit
DLED Straight Down Type
Response Time
8ms
Color Gamut
72% NTSC (Typ.)
Display Color
1.07B(10bit)
Contrast Ratio (Typ)
4000:1
Viewing Angle
178° (H/V)
Brightness
400 cd/m2
Life Time
60000 Hours
Touch System
Sensing Type
Infrared recognition
Touch point
20 Touch Point
Surface Hardness
Toughened Anti Glare Glass with
Level 7H of Mohs Standard with
Anti-Fingerprint coating & Anti-Glare coating
Video / Audio & Network
Speaker Type
Built-in Speaker
Output Power
(8Ω 15W)*2 stereo
Networks
WiFi 6 (IEEE 802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz) /LAN
Camera & Microphone (optional)
4K 13mega pixel, Auto-Focus with the
perspective angle of 100 degrees, 6 array
microphone with 0-8 meter pickup distance,
support 3D noise reduction Echo cancellation.
Display Connectors
HDMI IN
1 front 2 back
PC- Audio IN
1
SPDIF
1
USB 2.0
2 front 1 back
USB 3.0
2
USB Touch Output
1 front 1 back
RJ45
2
RS232
1
Type C
1 (Optional)
NFC Reader
1 (Optional)
HDMI Output
1 (Optional)
Power
Power Requirements
100~240V AC 50/60Hz
Standby Power
≤0.5W
Part Numbers
65″ Flat Panel
TR-FPV65T82
75″ Flat Panel
TR-FPV75T82
86″ Flat Panel
TR-FPV86T82
98″ Flat Pane
TR-FPV98T82
Product Dimensions
– 65 Inches: 1485*917.7*91.8 mm
– 75 Inches: 1707.4*1042.9*91.8 mm
– 86 Inches: 1953.6*1181.7*91.8 mm
– 98 Inches: 2216.8*1317.3*108.7mm
Weight - N.W - G.W
– 65 Inches:
– 75 Inches:
– 86 Inches:
– 98 Inches:
37.5 Kg
53.3 Kg
73 Kg
98 Kg
44.4 Kg
71 Kg
88.4 Kg
121 Kg
Built In Android
System Version
Android 11.0 / higher
CPU
Quad-Core A55 1.5GHz Mali
G53*MP2
Memory
4G/Optional 8G
Storage
32G / Optional 64G SSD
PC OPS (Optional)
Core i5/i7 4G 128SSD Windows 10 Optional
