Laptop Charging Cart

Introducing Trend’s Laptop Charging Cart – the perfect solution for charging and storing laptops and tablets! With Short Circuit Protection and Constant Current Charging, you can rest easy knowing that your devices are protected from any electrical issues.

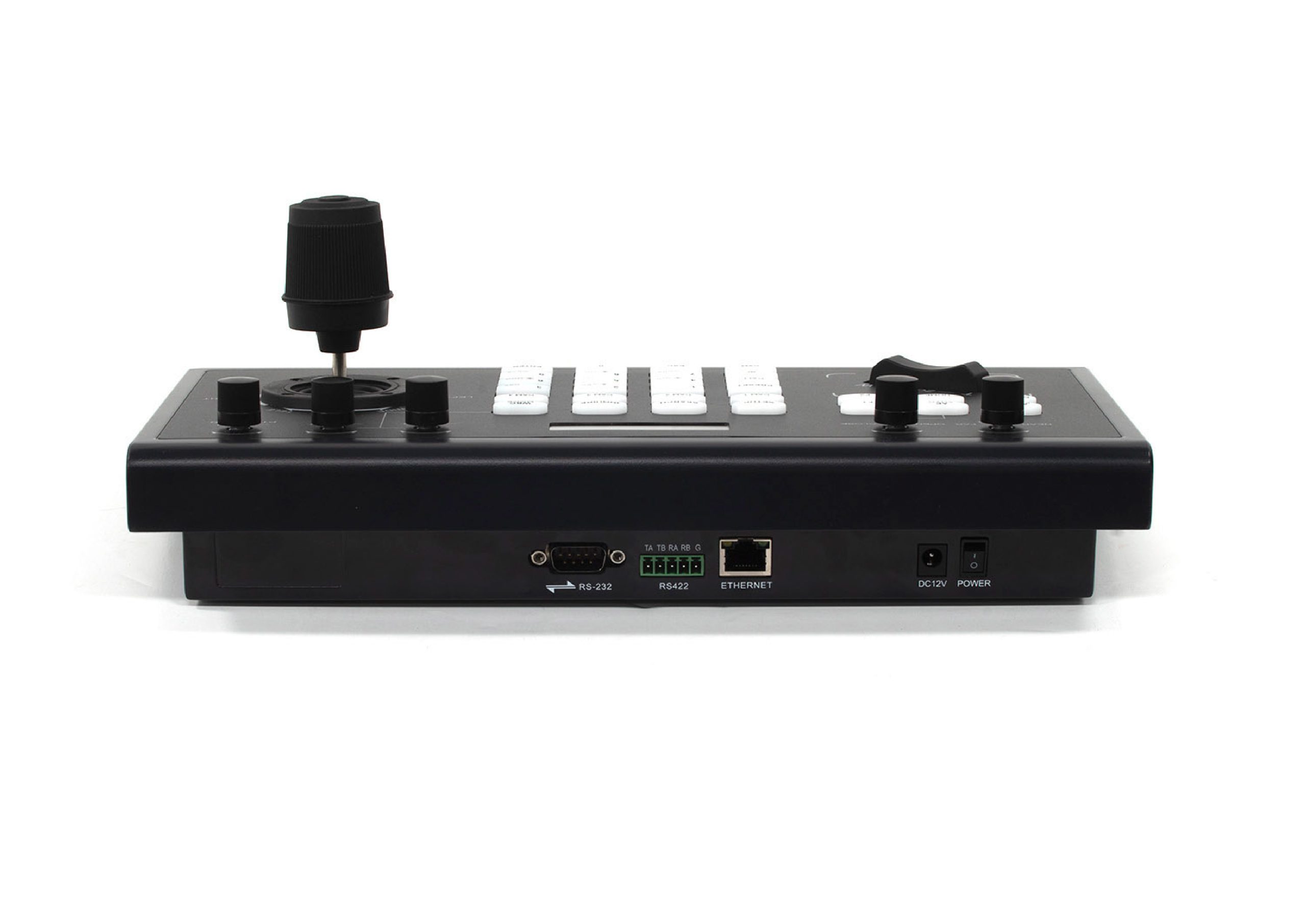

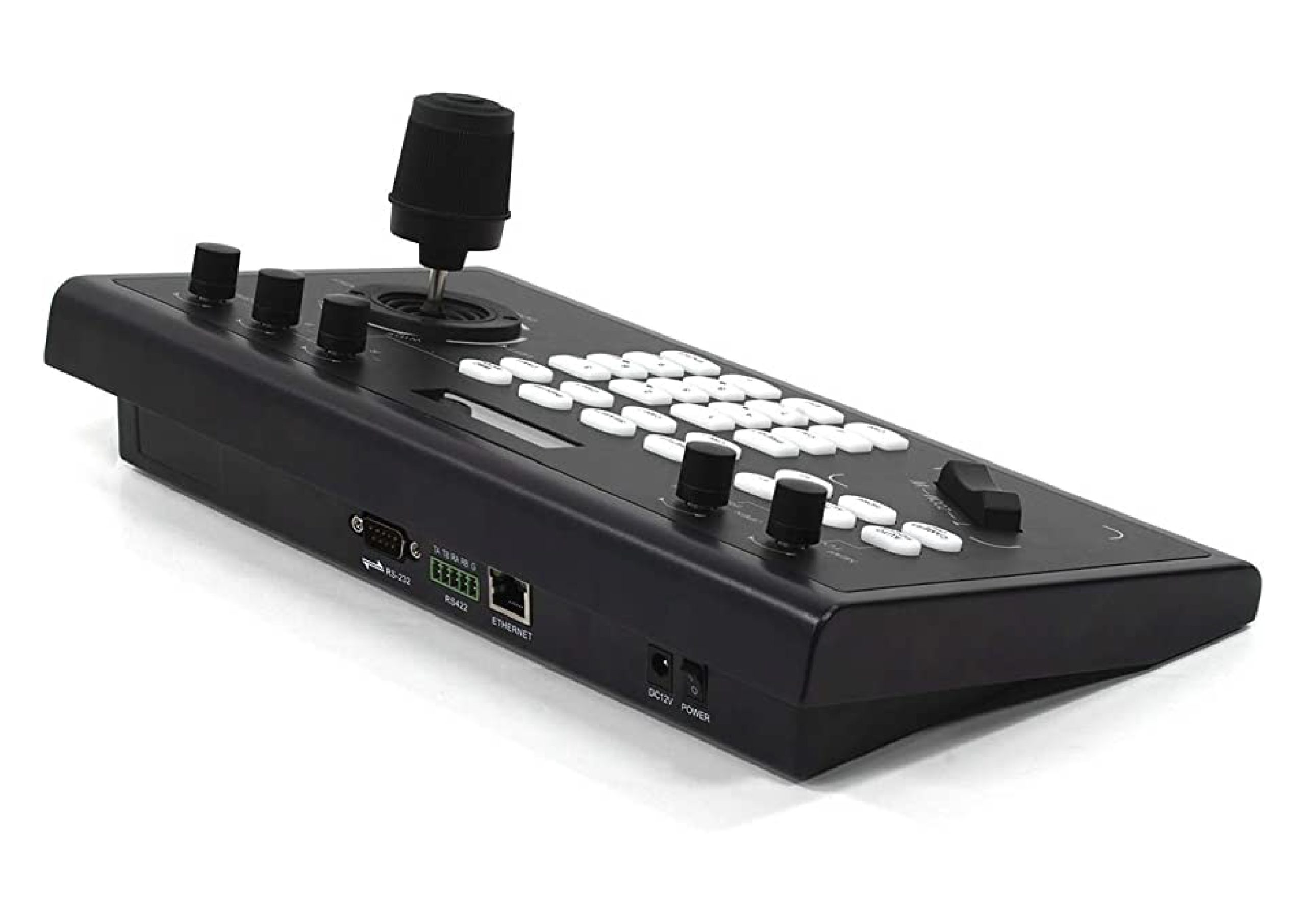

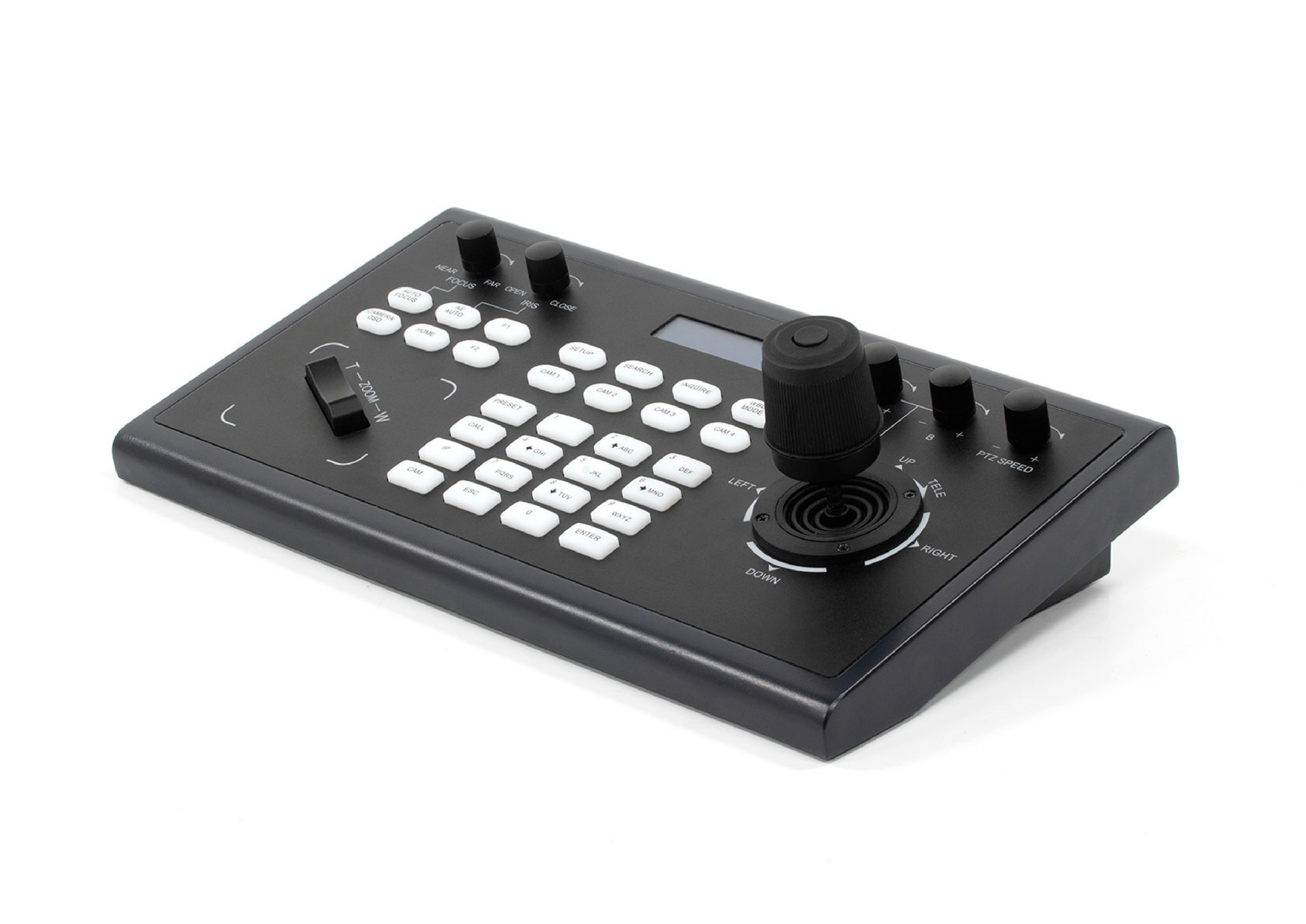

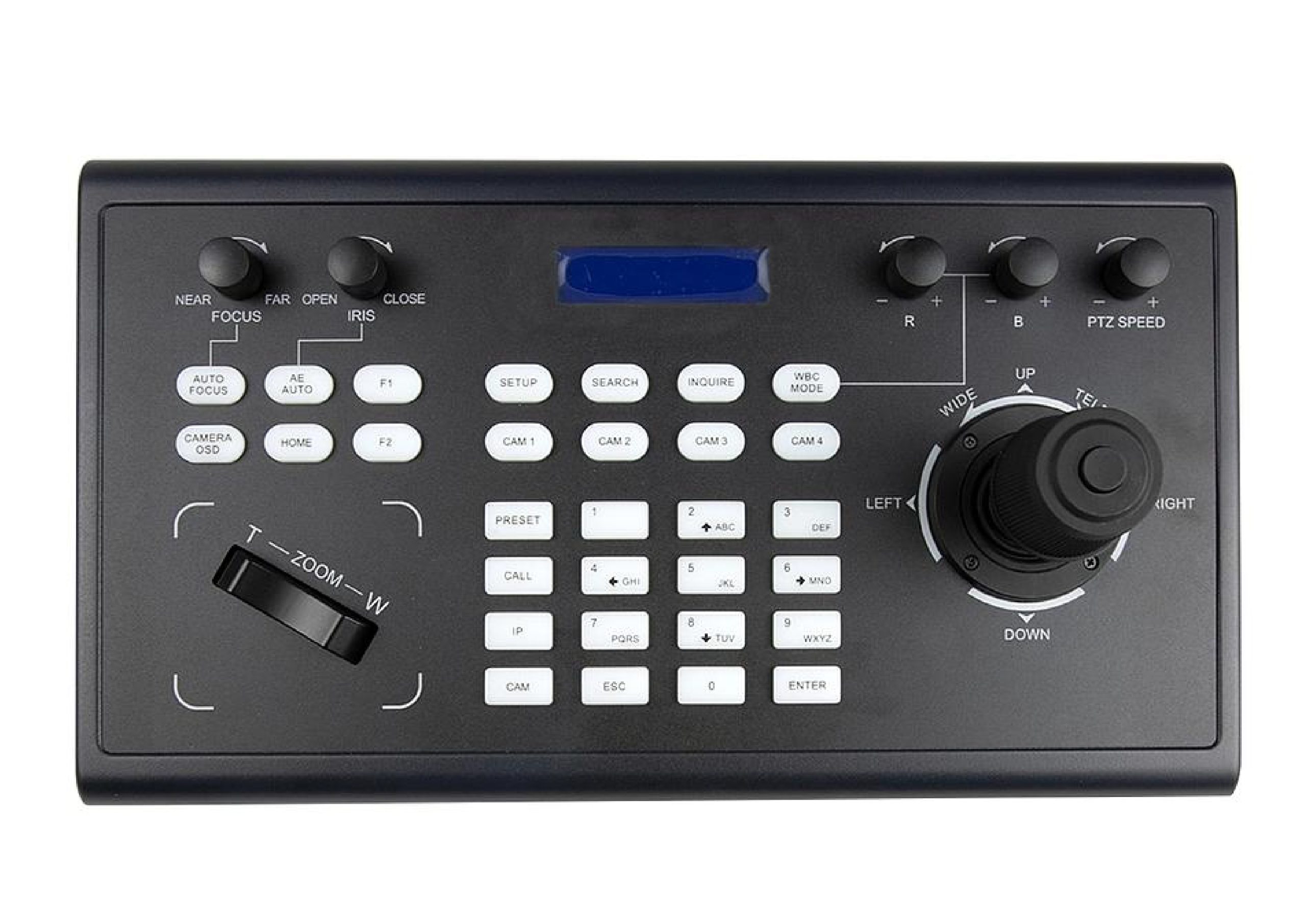

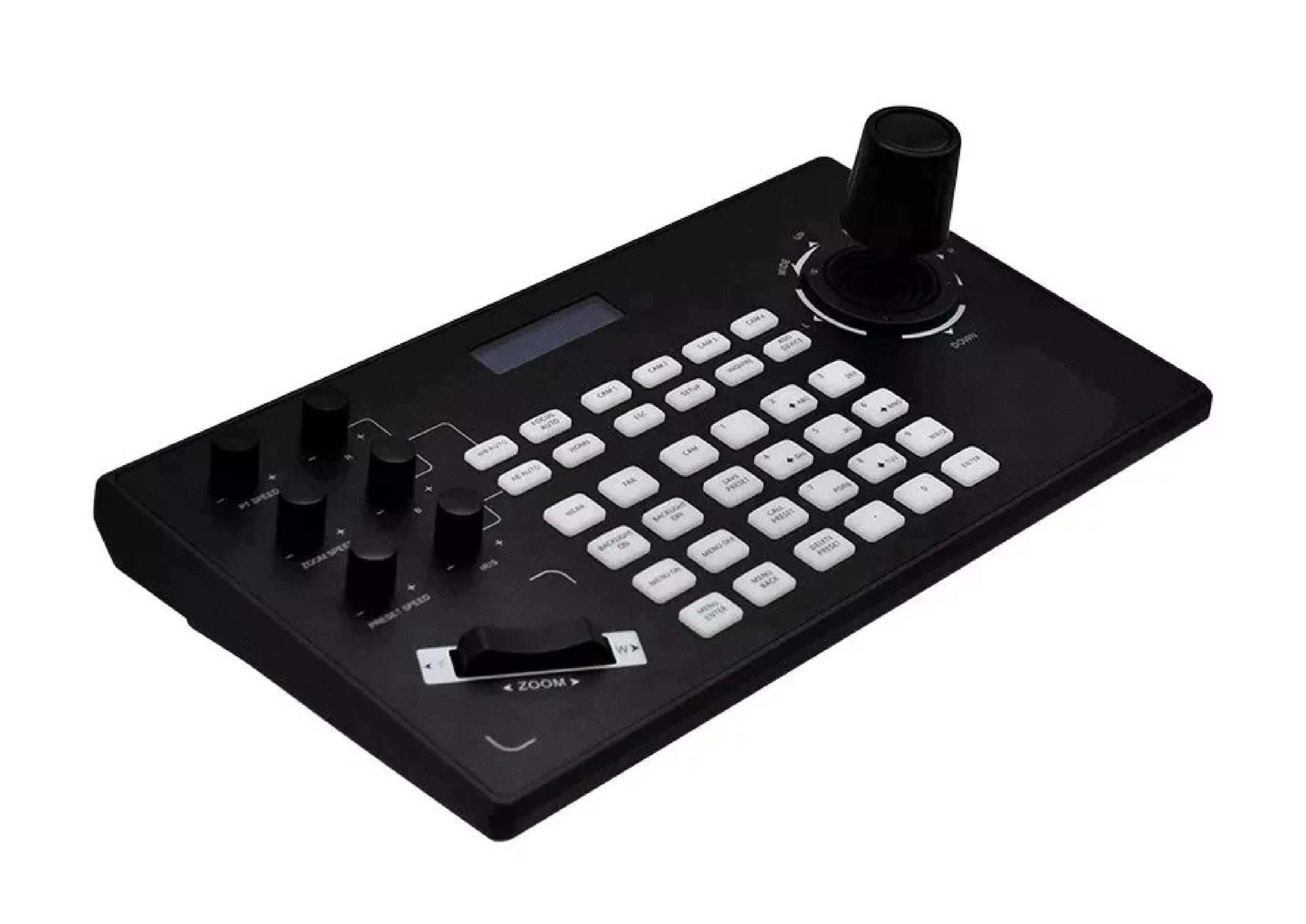

IP PTZ Camera Controller

  • Metal shell, silicone key design.
  • 4D joystick allows variable speed control to cameras.
  • All camera parameters can be set through the button operation. RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras. Maximum communication distance: 1200M(0.5MM Twisted-Pair Cable).
  • Supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
  • LCD display, keypad sound prompt, real-time display decoder and matrix working status.
  • Unique control code learning function allows customers to modify the control code instructions.
  • Any device on the RS485 bus can be individually configured with different protocols and baud rates.

Product Features

4K UHD Display

Powered by Android 11

Wireless Screen Sharing

Smart Backlight Adjusting

Multi Touch upto 20 points

Double Side Anti Glare Glass

Fast page sharing by scanning QR Code

HD 13 MP Camera with 6 Array Mic (Optional)

Product Specifications

Display

Panel Size
65/75/86/98 inches
Aspect Ratio
16:9
Resolution
3840(H)*2160(V) FULL UHD 4K
Back Light Unit
DLED Straight Down Type
Response Time
8ms
Color Gamut
72% NTSC (Typ.)
Display Color
1.07B(10bit)
Contrast Ratio (Typ)
4000:1
Viewing Angle
178° (H/V)
Brightness
400 cd/m2
Life Time
60000 Hours

Touch System

Sensing Type
Infrared recognition
Touch point
20 Touch Point
Surface Hardness
Toughened Anti Glare Glass with
Level 7H of Mohs Standard with
Anti-Fingerprint coating & Anti-Glare coating

Video / Audio & Network

Speaker Type
Built-in Speaker
Output Power
(8Ω 15W)*2 stereo
Networks
WiFi 6 (IEEE 802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz) /LAN
Camera & Microphone (optional)
4K 13mega pixel, Auto-Focus with the
perspective angle of 100 degrees, 6 array
microphone with 0-8 meter pickup distance,
support 3D noise reduction Echo cancellation.

Display Connectors

HDMI IN
1 front 2 back
PC- Audio IN
1
SPDIF
1
USB 2.0
2 front 1 back
USB 3.0
2
USB Touch Output
1 front 1 back
RJ45
2
RS232
1
Type C
1 (Optional)
NFC Reader
1 (Optional)
HDMI Output
1 (Optional)

Power

Power Requirements
100~240V AC 50/60Hz
Standby Power
≤0.5W

Part Numbers

65″ Flat Panel
TR-FPV65T82
75″ Flat Panel
TR-FPV75T82
86″ Flat Panel
TR-FPV86T82
98″ Flat Pane
TR-FPV98T82

Product Dimensions

– 65 Inches: 1485*917.7*91.8 mm
– 75 Inches: 1707.4*1042.9*91.8 mm
– 86 Inches: 1953.6*1181.7*91.8 mm
– 98 Inches: 2216.8*1317.3*108.7mm

Weight - N.W - G.W

– 65 Inches:
– 75 Inches:
– 86 Inches:
– 98 Inches:

37.5 Kg
53.3 Kg
73 Kg
98 Kg

44.4 Kg
71 Kg
88.4 Kg
121 Kg

Built In Android

System Version
Android 11.0 / higher
CPU
Quad-Core A55 1.5GHz Mali
G53*MP2
Memory
4G/Optional 8G
Storage
32G / Optional 64G SSD
PC OPS (Optional)
Core i5/i7 4G 128SSD Windows 10 Optional
